> >>Myson 3 Port Zone Valve 22mm MPE322IR

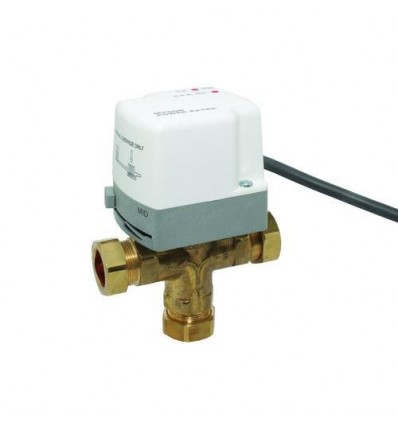

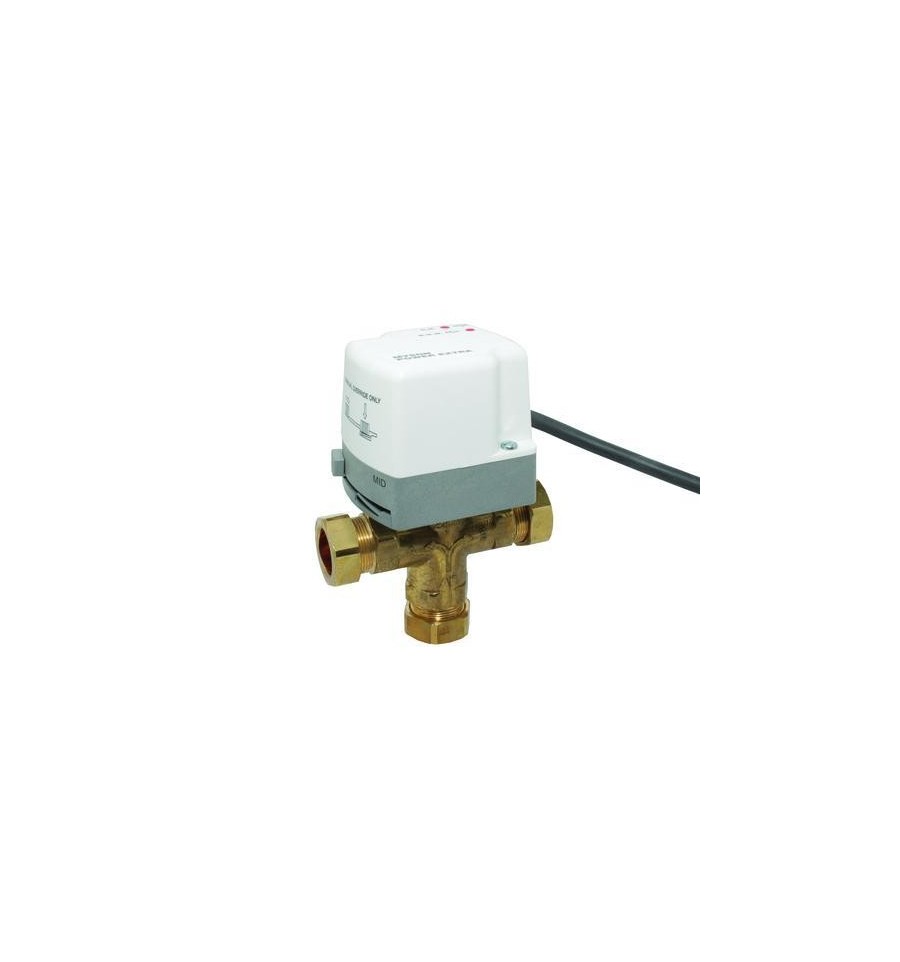

Myson 3 Port Zone Valve 22mm MPE322IR

MZV322

New

Myson 3 Port Zone Valve 22mm MPE322IR

More details

€117.97

tax incl.
Add to wishlist
  • Myson 3 Port Zone Valve 22mm MPE322IR
  • Designed To Control Water Circulation In Primary Hot Water & Central Heating Circuits By Diverting Flow To Either Circuit, Or To Both Simultaneously Using A Single Valve
  • Neon Indicator Light Indicates Which Port Is Open
  • When The Manual Lever Is Moved To The right, Ports A & B Are Open, This Is Used When Filling, Venting Or Draining The System. The Spring Return Mid-Position Actuator–Valve Rests In The Hot Water Only Position
  • Motor Supply Voltage; 230V AC
  • Frequency; 50Hz
  • Power Consumption; 6W
  • Motor Insulation Rating; Class ‘F’
  • Maximum Working Pressure; 10 Bar
  • Maximum Water Temperature; 95°C
  • Maximum Ambient Temperature; 52°C
  • KV value; 6.6
  • Switch Rating; 3(0.5) A
  • High Temperature Silicon Cable; 1100mm
  • Valve Body Brass With Spring-Loaded Mica Filled PTFE Shoes
  • Actuator; Power To Open, Spring To Close
