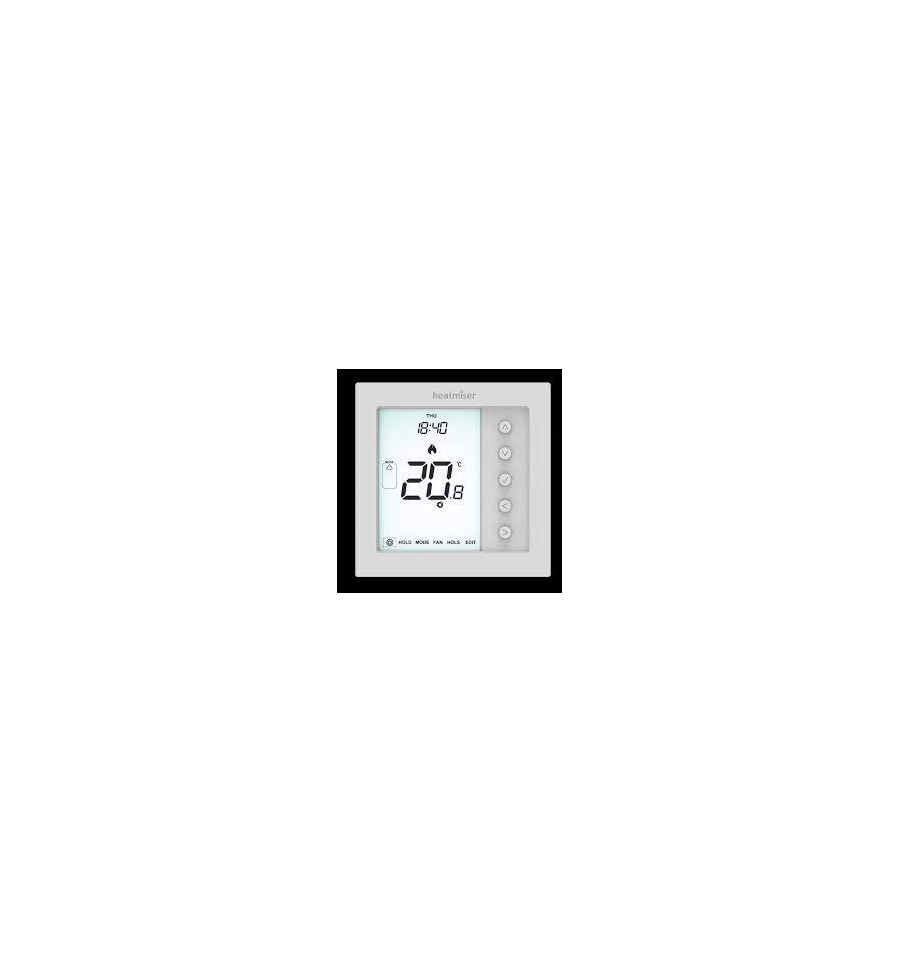

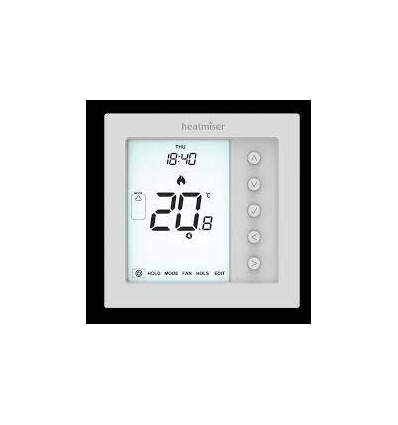

Heatmiser Edge Multimode Fan Coil Thermostat with Modbus Communication
Heatmiser Reference: EDGE-HC MODBUS
Heatmiser Edge-HC is our Multi Mode Fan Coil Thermostat with Modbus Communication and Wireless Sensing.
The Heatmiser edge-hc operation mode can be selected in software between 5 different types. This extensive system support means clients only need to stock one model, rather than a whole series of products to cater for the different systems.
System Modes:
- 2 Pipe system, selectable heat or cool only
- 2 Pipe system, Cool only
- 2 Pipe system, Heat & Cool (fans for Cool only)
- 4 Pipe system, Heat, Cool & Auto
- 2 Pipe system, Cooling and 2 Stage Heating
Functions;
- Modbus Connection
- Wireless RF Air Sensor & Door Contact Support
- Large Display
- Non Programmable, 5/2 day, 7 day or 24 hour programming (selectable in software)
- 5 System Type Support (Selectable in Software)
- Fan Speed (High, Med, Low & Auto)
- Self Learning Optimum Start
- 4 or 6 Comfort Levels per Day (Selectable)
- Temperature Hold Facility
- Holiday Facility
- Automatic White Back-Lit Display (Turns off after 30 seconds)
- Flush Mounting
- C/F Selectable
- Key Locking
- 230v AC
- 3A Switching
- ErP Class & Ratings
Height | 110mm |
Width | 100mm |
Depth | 17mm |
